Experiments / Batch 69

Batch 69 not OK

02.06.2026 · Mr. Mohan Yadav · also written as S 9076 · S 9076 #69
S 9076 #69 not ok.docx application testing
Conclusion — verbatim from the source
“Results: Not OK (Gloss and Colour strength inferior).”
S 9076 #69 not ok.docx, application test report (Results row)
Aim

Application testing of sample S 9076 (batch 69) against reference standard BYK 9076 as dispersing additive in Nitrocellulose ink resin base, in Violet 23, Violet 27, and Carbon Black N 330 ink systems.

Observations

Physical appearance: Reference Standard BYK 9076 – Amber to yellow viscous liquid; S 9076 – Yellow viscous liquid. Violet 23: S 9076 slightly opaque, color strength 98-99 vs 100.00, re-solubility rating 1 (Fail) vs 3. Violet 27: S 9076 colour shade bluer, color strength 60-70 vs 100.00, re-solubility printed value 18.5 vs 3. Carbon Black N 330: S 9076 in line with reference on all printed parameters.

Raw materials
MaterialRole
S 9076 (Batch No 69)-
BYK 9076-
Reaction conditions (optimized)
other: Re-solubility tested in Ethyl Acetate + Toluene (50:50). Viscosity measured B4 Cup @26°C. Re-solubility rating scale: 1 – Fail, 2 – Poor, 3 – Average, 4 – Good, 5 – Excellent.
Sample unspecified sample
result Application test (grinding, colour, transparency, color strength, viscosity, adhesion, gloss, re-solubility, separation, settling) (Nitrocellulose ink, Violet 23)
ParameterThis sample
Grinding (µm) Ref Standard < 5 µm, S 9076 < 5 µm
Colour Shade Ref Standard Reference Std, S 9076 As per Std
Transparency Ref Standard Reference Std, S 9076 Slightly opaque
Color Strength (%) Ref Standard 100.00, S 9076 98-99
Viscosity (B4 Cup @26°C) Ref Standard 29 s, S 9076 30 s
Adhesion (Tape Test) Ref Standard Pass, S 9076 Pass
Gloss @ 60° Ref Standard 67.1, S 9076 64.2
Re-solubility (Rating) Ref Standard 3, S 9076 1
Separation Ref Standard No, S 9076 No
Settling Ref Standard No, S 9076 No
vs standard: Colour shade as per standard; transparency slightly opaque vs reference; color strength 98-99 vs 100.00; re-solubility 1 (Fail) vs 3 (Average)
result Application test (grinding, colour, transparency, color strength, viscosity, adhesion, gloss, re-solubility, separation, settling) (Nitrocellulose ink, Violet 27)
ParameterThis sample
Grinding (µm) Ref Standard < 5 µm, S 9076 < 5 µm
Colour Shade Ref Standard Reference Std, S 9076 Bluer
Transparency Ref Standard Reference Std, S 9076 Transparent
Color Strength (%) Ref Standard 100.00, S 9076 60-70
Viscosity (B4 Cup @26°C) Ref Standard 27 s, S 9076 28 s
Adhesion (Tape Test) Ref Standard Pass, S 9076 Pass
Gloss @ 60° Ref Standard 8.8, S 9076 7.9
Re-solubility (Rating) Ref Standard 3, S 9076 18.5
Separation Ref Standard No, S 9076 No
Settling Ref Standard No, S 9076 No
vs standard: Colour shade bluer; color strength 60-70 vs 100.00; gloss 7.9 vs 8.8; re-solubility value 18.5 (outside 1-5 rating scale, verbatim as printed) vs 3
result Application test (grinding, colour, transparency, color strength, viscosity, adhesion, gloss, re-solubility, separation, settling) (Nitrocellulose ink, Carbon Black N 330)
ParameterThis sample
Grinding (µm) Ref Standard < 5 µm, S 9076 < 5 µm
Colour Shade Ref Standard Reference Std, S 9076 As per Std
Transparency Ref Standard Reference Std, S 9076 As per Std
Color Strength (%) Ref Standard 100.00, S 9076 100.00
Viscosity (B4 Cup @26°C) Ref Standard 32 s, S 9076 33 s
Adhesion (Tape Test) Ref Standard Pass, S 9076 Pass
Gloss @ 60° Ref Standard 41.9, S 9076 45.4
Re-solubility (Rating) Ref Standard 3, S 9076 2
Separation Ref Standard No, S 9076 No
Settling Ref Standard No, S 9076 No
vs standard: Matches reference on all parameters; re-solubility 2 (Poor) vs 3 (Average); gloss slightly higher (45.4 vs 41.9)

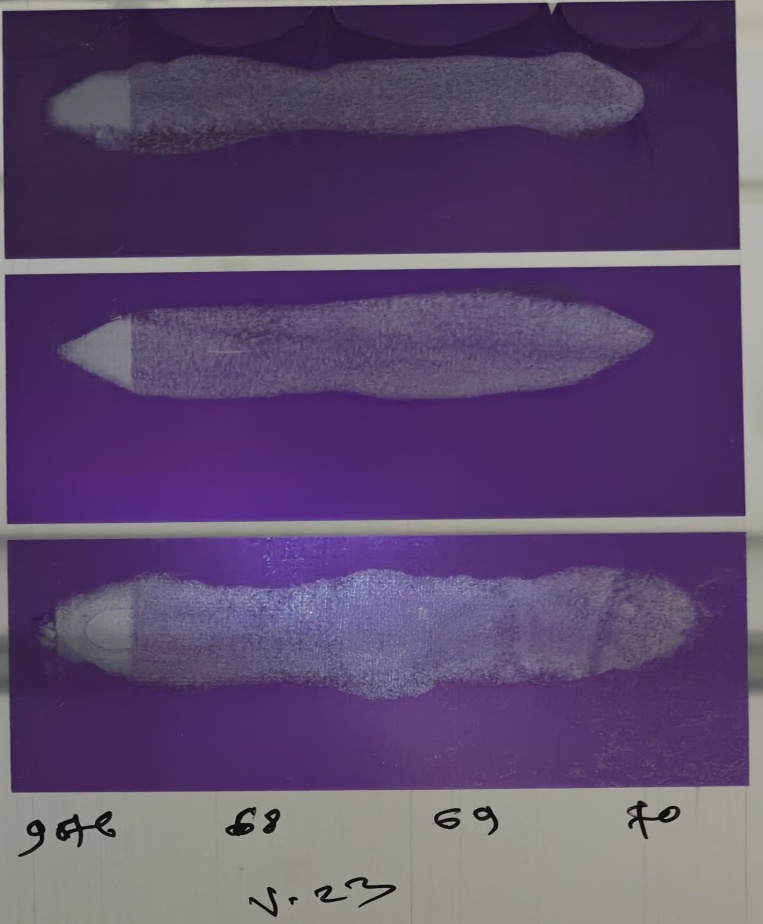

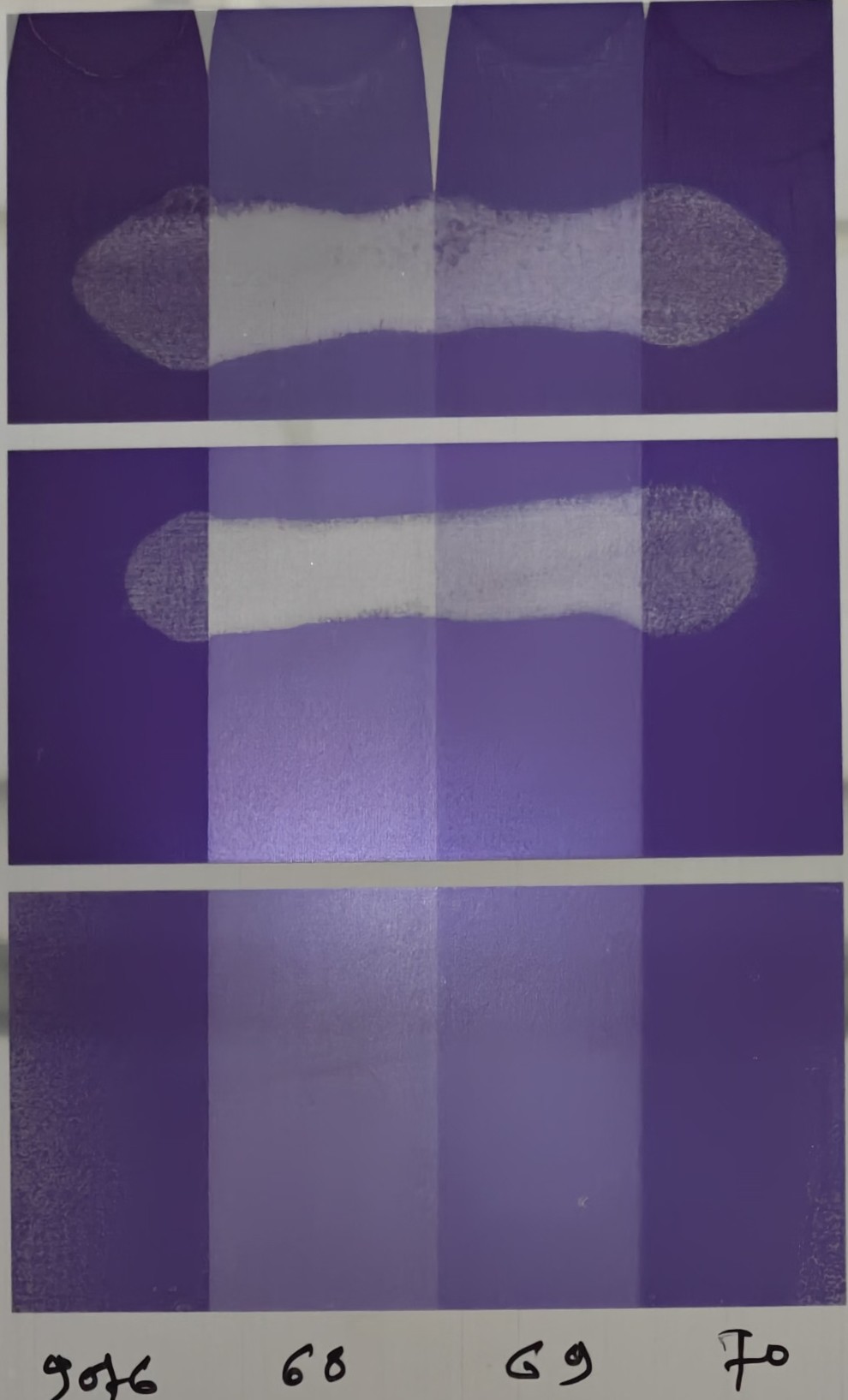

Test report photos
S 9076 #69 not ok.docx — 3 photos
